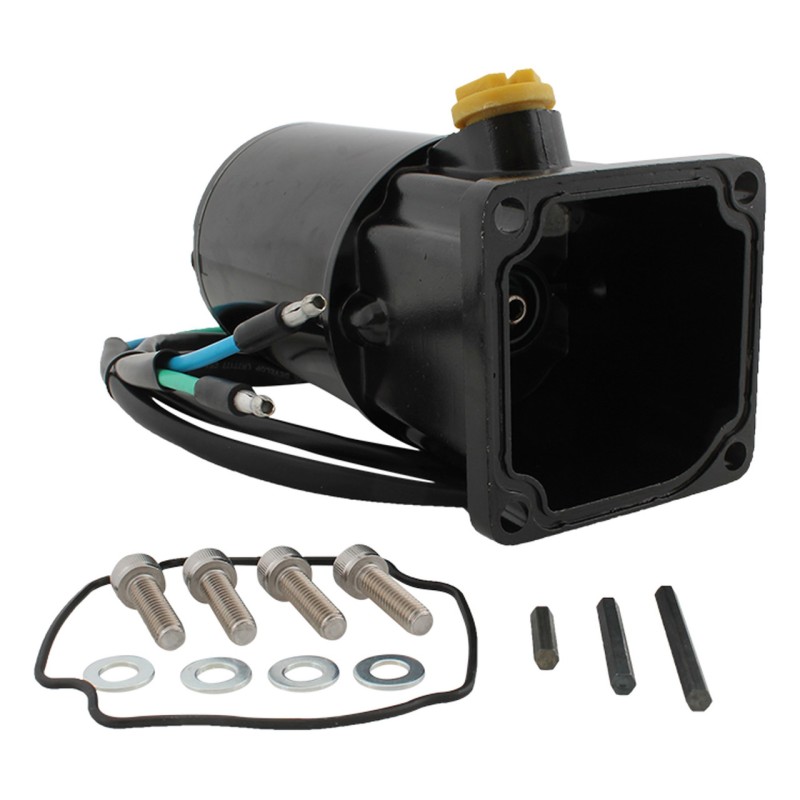

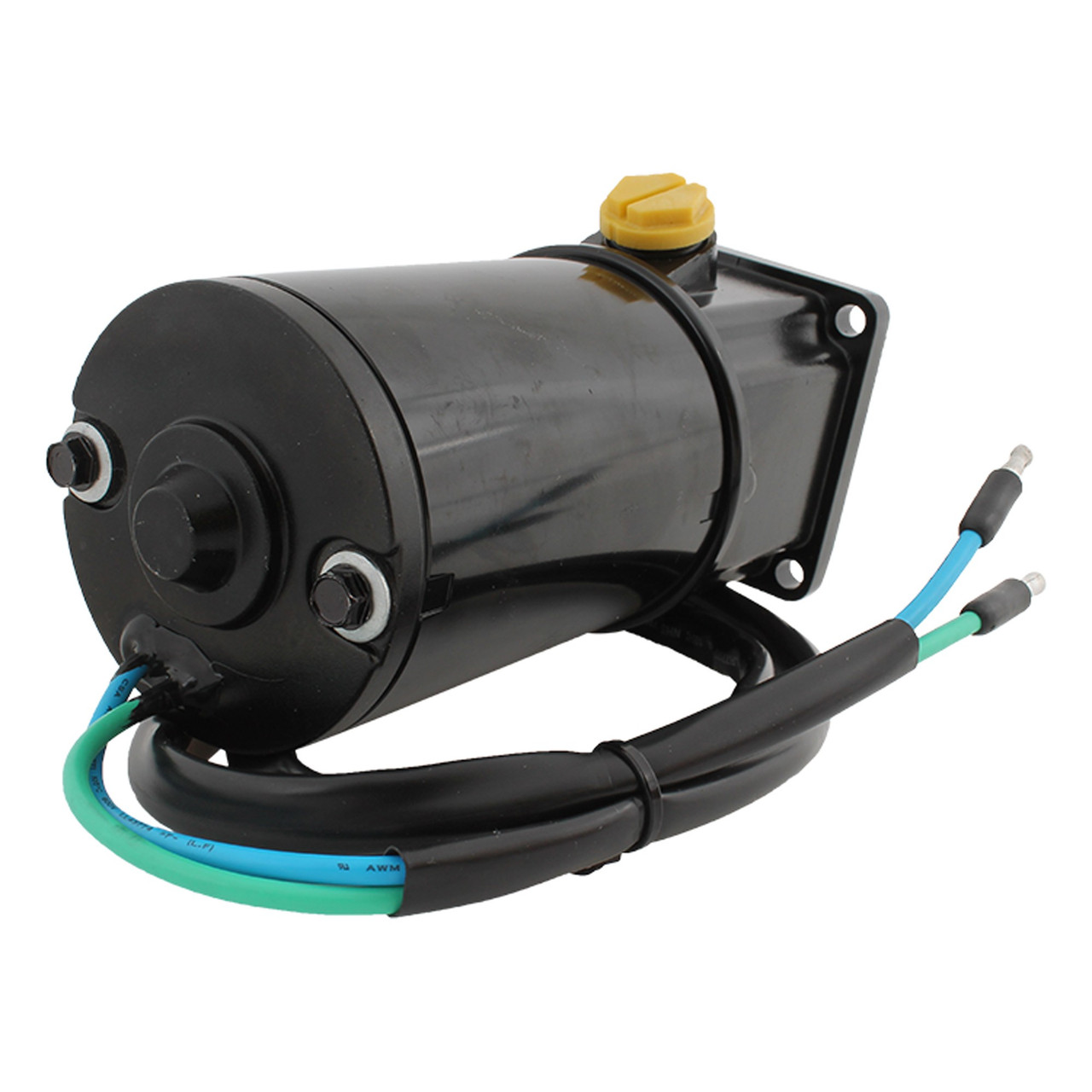

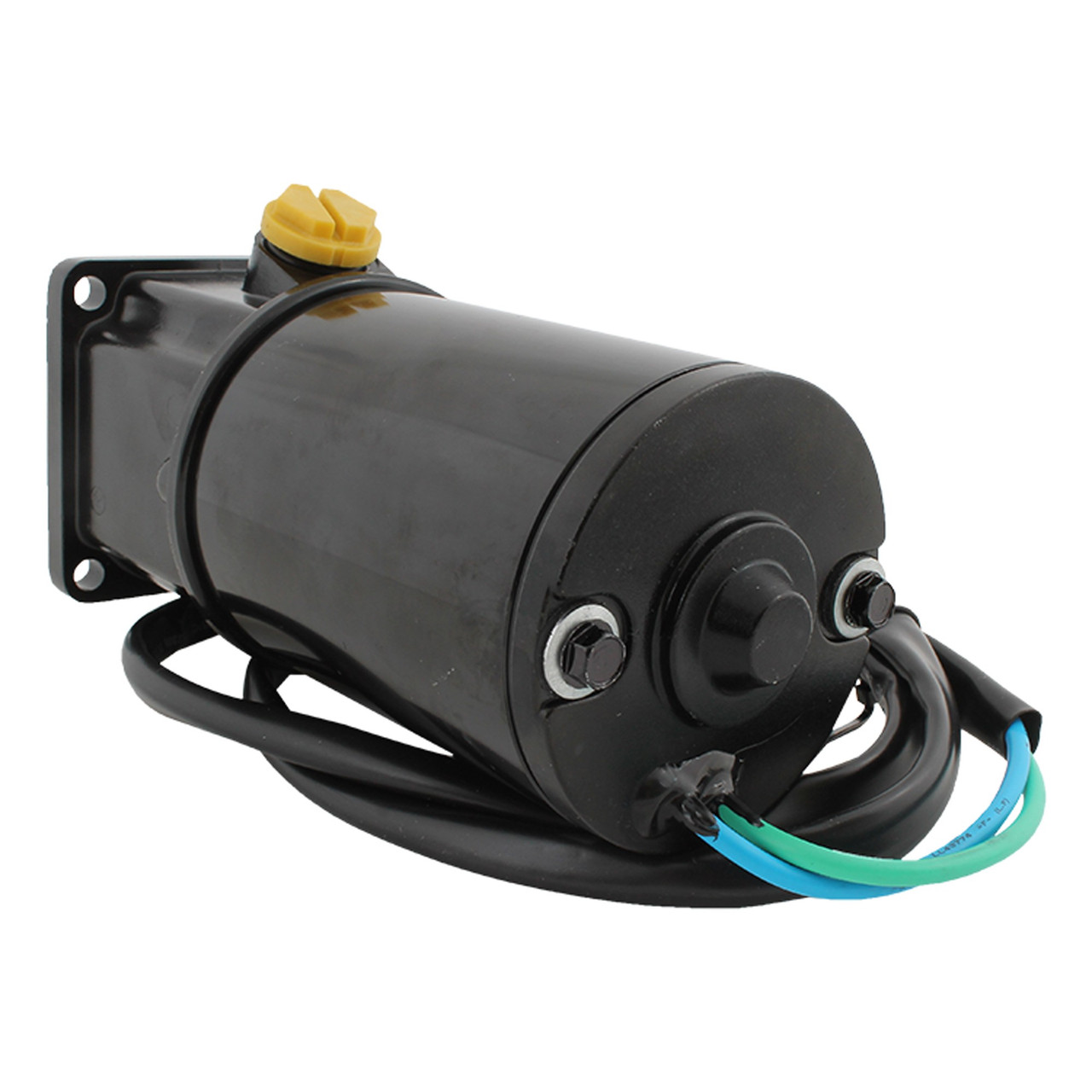

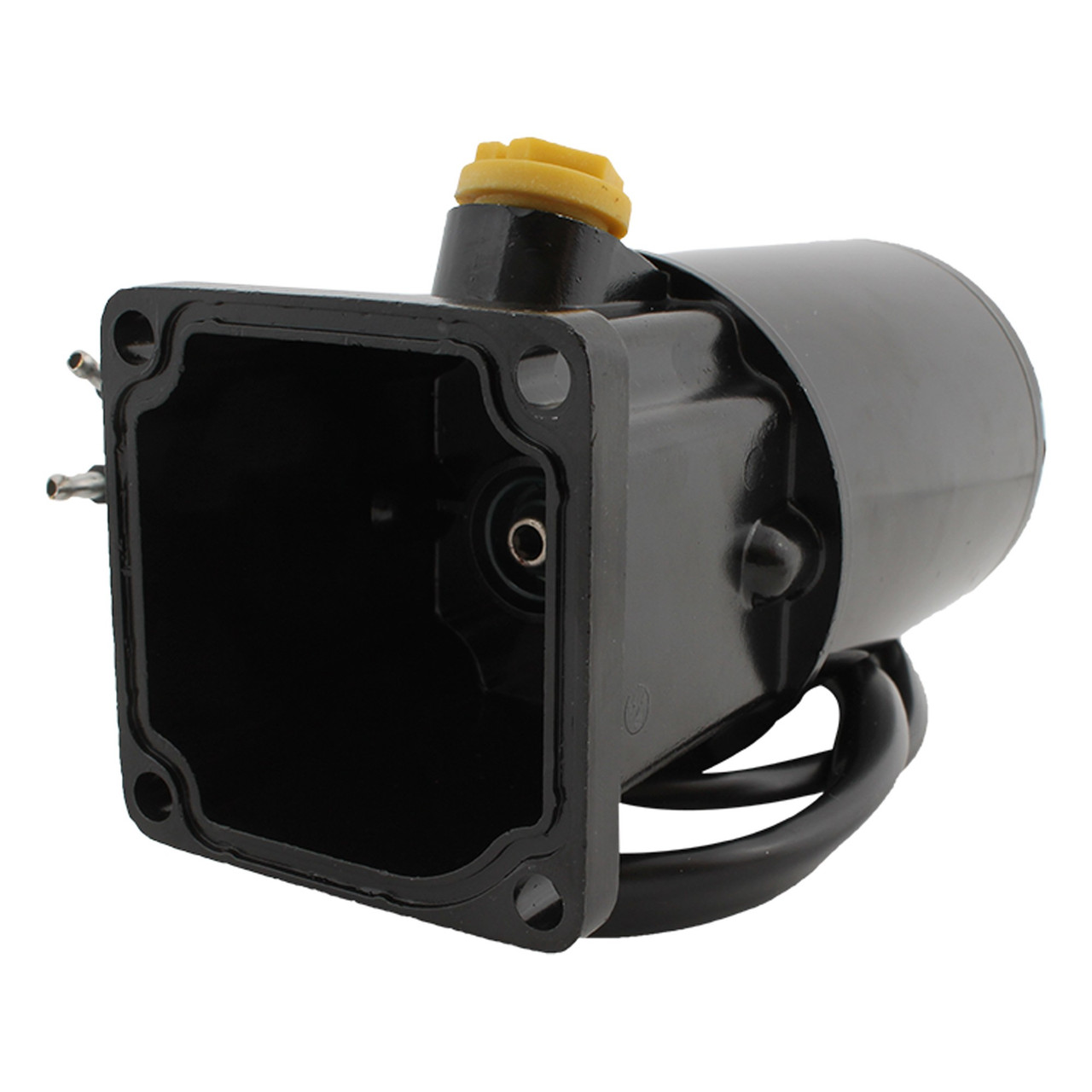

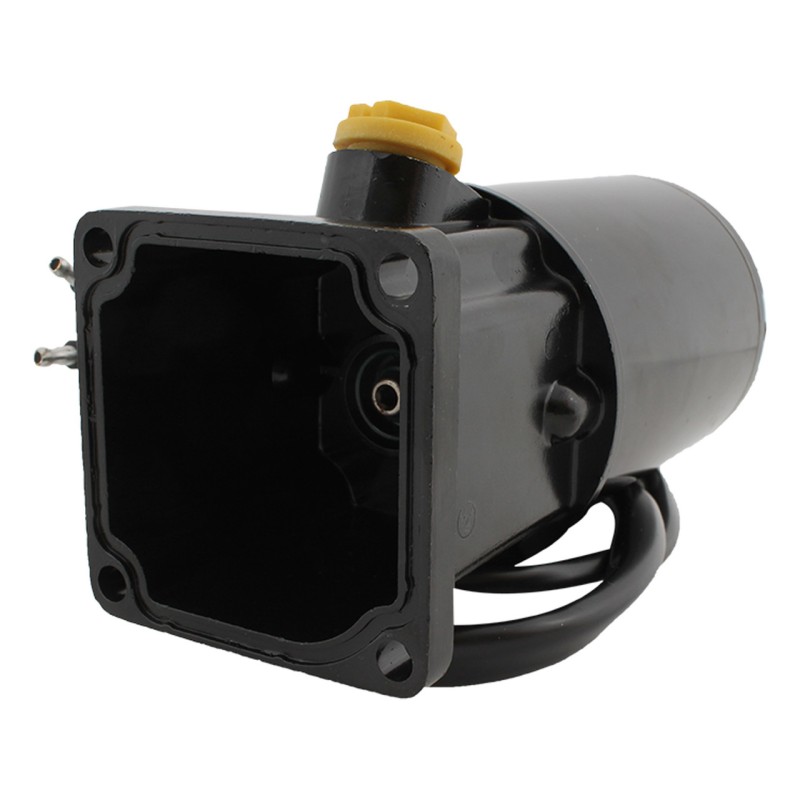

Tilt Trim Motor Mercury Mariner 50-125hp 809885A1
Tilt Trim Motor Mercury Mariner 50-125hp 809885A1  Tilt Trim Motor Mercury Mariner 50-125hp 809885A1  Tilt Trim Motor Mercury Mariner 50-125hp 809885A1

Tilt Trim Motor Mercury Mariner 50-125hp 809885A1

  • Item #: 430-22008
  • Stock: In Stock

OVERVIEW

Tilt Trim Motors for Mercury Marine and Force Outboards
Owners of Mercury and Force motors appreciate the flawless and precise operation of Voltcore Starter & Alternator tilt trim motors that match OEM performance. Voltcore Starter & Alternator tilt trim motors smoothly raise and lower boat engines to the perfect angle for better on-the-water performance and fuel economy. They can also lift your engine upward to avoid damage when loading your boat on a trailer. Tilt trim motors make your days out on the water more enjoyable by giving you more control over how your boat performs. Our tilt trim motors are 12-volt direct current, reversing-style motors. We test our tilt trim motors on a professional test bench to ensure dependable performance.

Top Reasons to Choose Voltcore Starter & Alternator Tilt Trim Motors

  • Marine grade that meets SAE J1171 and ISO8847
  • Recommended as a Mercury tilt trim motor replacement
  • Designed to meet or exceed original (OEM) equipment specifications
  • High quality brushes, bushings and armatures for longer service life
  • Includes harness, relays and heavy-duty valves where applicable

How Tilt Trim Motors Work
When it’s time to install a tilt trim motor, you’ll notice one green and one blue wire on most models. The blue wire carries power to raise the engine, and the green wire carries power to lower the engine. Motors built for older-style systems may also have a black wire that serves as a ground. Newer style systems do not have this third wire.

Money-Saving Bottom Line Difference
Our tilt trim motors are typically priced lower than OEM counterparts. Because there is no middleman, we can offer these exceptional-quality tilt trim motors at low factory direct prices.

The Voltcore Starter & Alternator Advantage - 1-Year Warranty
Voltcore Starter & Alternator delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your motor meets your expectations.

Item Number: 430-22008

100% Brand New Aftermarket Part From Voltcore Starter & Alternator

PRODUCT SPECS

Item Condition Aftermarket Part
Unit Type Tilt & Trim Motor
Voltage 12
Rotation RE
Dimension Replacement Unit:; OD: 2.866in / 72.8mm; Length: 6.89in / 175mm;
Fits TILT MOTOR & RESERVOIR MERCURY / MARINER
Dimension Replacement Unit:; OD: 2.866in / 72.8mm; Length: 6.89in / 175mm;
Dimension Replacement Unit:; OD: 2.866in / 72.8mm; Length: 6.89in / 175mm;
Dimension Replacement Unit:; OD: 2.866in / 72.8mm; Length: 6.89in / 175mm;
Dimension Replacement Unit:; OD: 2.866in / 72.8mm; Length: 6.89in / 175mm;

APPLICATIONS LIST

MAKE TYPE MODEL YEAR ENGINE
FORCE Engines - Marine Outboard 1201 1990 120HP
FORCE Engines - Marine Outboard 1201 1991 120HP
FORCE Engines - Marine Outboard 1201 1992 120HP
FORCE Engines - Marine Outboard 1208 1990 120HP
FORCE Engines - Marine Outboard 1208 1991 120HP
FORCE Engines - Marine Outboard 1208 1992 120HP
FORCE Engines - Marine Outboard 120ELPT 1993 120HP
FORCE Engines - Marine Outboard 120ELPT 1994 120HP
FORCE Engines - Marine Outboard 120ELPT 1996 120HP
FORCE Engines - Marine Outboard 120ELPT 1997 120HP
FORCE Engines - Marine Outboard 120ELPT 1998 120HP
FORCE Engines - Marine Outboard 120ELPT 1999 120HP
FORCE Engines - Marine Outboard 120EXLPT 1993 120HP
FORCE Engines - Marine Outboard 120EXLPT 1994 120HP
FORCE Engines - Marine Outboard 120EXLPT 1996 120HP
FORCE Engines - Marine Outboard 120EXLPT 1997 120HP
FORCE Engines - Marine Outboard 120EXLPT 1998 120HP
FORCE Engines - Marine Outboard 120EXLPT 1999 120HP
FORCE Engines - Marine Outboard 1501 1989 150HP
FORCE Engines - Marine Outboard 1501 1990 150HP
FORCE Engines - Marine Outboard 1501 1991 150HP
FORCE Engines - Marine Outboard 1501 1992 150HP
FORCE Engines - Marine Outboard 1508 1989 150HP
FORCE Engines - Marine Outboard 1508 1990 150HP
FORCE Engines - Marine Outboard 1508 1991 150HP
FORCE Engines - Marine Outboard 1508 1992 150HP
FORCE Engines - Marine Outboard 150ELPT 1993 150HP
FORCE Engines - Marine Outboard 150ELPT 1994 150HP
FORCE Engines - Marine Outboard 150EXLPT 1993 150HP
FORCE Engines - Marine Outboard 150EXLPT 1994 150HP
FORCE Engines - Marine Outboard 407 1992 40HP
FORCE Engines - Marine Outboard 408 1992 40HP
FORCE Engines - Marine Outboard 40EL 1993 40HP
FORCE Engines - Marine Outboard 40EL 1994 40HP
FORCE Engines - Marine Outboard 40ELPT 1993 40HP
FORCE Engines - Marine Outboard 40ELPT 1994 40HP
FORCE Engines - Marine Outboard 507 1991 50HP
FORCE Engines - Marine Outboard 507 1992 50HP
FORCE Engines - Marine Outboard 508 1991 50HP
FORCE Engines - Marine Outboard 508 1992 50HP
FORCE Engines - Marine Outboard 50EL 1993 50HP
FORCE Engines - Marine Outboard 50EL 1994 50HP
FORCE Engines - Marine Outboard 50ELPT 1993 50HP
FORCE Engines - Marine Outboard 50ELPT 1994 50HP
FORCE Engines - Marine Outboard 706 1991 70HP
FORCE Engines - Marine Outboard 706 1992 70HP
FORCE Engines - Marine Outboard 708 1991 70HP
FORCE Engines - Marine Outboard 708 1992 70HP
FORCE Engines - Marine Outboard 70EL 1993 70HP
FORCE Engines - Marine Outboard 70EL 1994 70HP
FORCE Engines - Marine Outboard 70EL 1995 70HP
FORCE Engines - Marine Outboard 70ELPT 1993 70HP
FORCE Engines - Marine Outboard 70ELPT 1994 70HP
FORCE Engines - Marine Outboard 70ELPT 1995 70HP
FORCE Engines - Marine Outboard 75EL 1996 75HP
FORCE Engines - Marine Outboard 75EL 1997 75HP
FORCE Engines - Marine Outboard 75EL 1998 75HP
FORCE Engines - Marine Outboard 75EL 1999 75HP
FORCE Engines - Marine Outboard 75ELPT 1996 75HP
FORCE Engines - Marine Outboard 75ELPT 1997 75HP
FORCE Engines - Marine Outboard 75ELPT 1998 75HP
FORCE Engines - Marine Outboard 75ELPT 1999 75HP
FORCE Engines - Marine Outboard 903 1991 90HP
FORCE Engines - Marine Outboard 903 1992 90HP
FORCE Engines - Marine Outboard 906 1991 90HP
FORCE Engines - Marine Outboard 906 1992 90HP
FORCE Engines - Marine Outboard 908 1991 90HP
FORCE Engines - Marine Outboard 908 1992 90HP
FORCE Engines - Marine Outboard 90EL 1993 90HP
FORCE Engines - Marine Outboard 90EL 1994 90HP
FORCE Engines - Marine Outboard 90ELPT 1993 90HP
FORCE Engines - Marine Outboard 90ELPT 1994 90HP
FORCE Engines - Marine Outboard 90ELPT 1996 90HP
FORCE Engines - Marine Outboard 90ELPT 1997 90HP
FORCE Engines - Marine Outboard 90ELPT 1998 90HP
FORCE Engines - Marine Outboard 90ELPT 1999 90HP
FORCE Engines - Marine Outboard 90EXLPT 1993 90HP
FORCE Engines - Marine Outboard 90EXLPT 1994 90HP
FORCE Engines - Marine Outboard 90EXLPT 1996 90HP
FORCE Engines - Marine Outboard 90EXLPT 1997 90HP
FORCE Engines - Marine Outboard 90EXLPT 1998 90HP
FORCE Engines - Marine Outboard 90EXLPT 1999 90HP
MERCURY MARINE Engines - Marine Outboard 100ELPTO 2-Stroke 1988 100HP
MERCURY MARINE Engines - Marine Outboard 100ELPTO 2-Stroke 1989 100HP
MERCURY MARINE Engines - Marine Outboard 100ELXLPTO 2-Stroke 1988 100HP
MERCURY MARINE Engines - Marine Outboard 100ELXLPTO 2-Stroke 1989 100HP
MERCURY MARINE Engines - Marine Outboard 115ELPTO 2-Stroke 1989 115HP
MERCURY MARINE Engines - Marine Outboard 115EXLPTO 2-Stroke 1989 115HP
MERCURY MARINE Engines - Marine Outboard 35ELO 1987 35HP
MERCURY MARINE Engines - Marine Outboard 35ELO 1988 35HP
MERCURY MARINE Engines - Marine Outboard 35ELO 1989 35HP
MERCURY MARINE Engines - Marine Outboard 35ELPTO 1987 35HP
MERCURY MARINE Engines - Marine Outboard 35ELPTO 1988 35HP
MERCURY MARINE Engines - Marine Outboard 35ELPTO 1989 35HP
MERCURY MARINE Engines - Marine Outboard 35EO 1987 35HP
MERCURY MARINE Engines - Marine Outboard 35EO 1988 35HP
MERCURY MARINE Engines - Marine Outboard 35EO 1989 35HP
MERCURY MARINE Engines - Marine Outboard 35M 1987 35HP
MERCURY MARINE Engines - Marine Outboard 35M 1988 35HP
MERCURY MARINE Engines - Marine Outboard 35M 1989 35HP
MERCURY MARINE Engines - Marine Outboard 35ML 1987 35HP
MERCURY MARINE Engines - Marine Outboard 35ML 1988 35HP
MERCURY MARINE Engines - Marine Outboard 35ML 1989 35HP
MERCURY MARINE Engines - Marine Outboard 40ELHPTO 2-Stroke 1989 40HP
MERCURY MARINE Engines - Marine Outboard 40ELO 2-Stroke 1989 40HP
MERCURY MARINE Engines - Marine Outboard 40ELPTO 2-Stroke 1989 40HP
MERCURY MARINE Engines - Marine Outboard 50ELO 2-Stroke 1988 50HP
MERCURY MARINE Engines - Marine Outboard 50ELO 2-Stroke 1989 50HP
MERCURY MARINE Engines - Marine Outboard 50ELPTO 2-Stroke 1988 50HP
MERCURY MARINE Engines - Marine Outboard 50ELPTO 2-Stroke 1989 50HP
MERCURY MARINE Engines - Marine Outboard 60ELO 2-Stroke 1988 60HP
MERCURY MARINE Engines - Marine Outboard 60ELO 2-Stroke 1989 60HP
MERCURY MARINE Engines - Marine Outboard 60ELPTO 2-Stroke 1988 60HP
MERCURY MARINE Engines - Marine Outboard 60ELPTO 2-Stroke 1989 60HP
MERCURY MARINE Tilt AND Trim All Models All 30-125 HP
MERCURY MARINE Tilt AND Trim All Models All 50-125 HP
FORCE ENGINE - OUTBOARD ALL MODELS ALL NA
MERCURY ENGINE - OUTBOARD ALL MODELS ALL NA

REPLACES THESE PART NUMBERS

API MARINE PT497NK
ARCO MARINE 6276
ARROWHEAD TRM0047, 430-22008
EMP PARTS 4-6777
J&N Electrical Products 430-22008
LESTER 10827, 10850
MERCURY MARINE 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 893907A02
SIERRA MARINE 18-6777
WAI 10827N
